• Architected an end-to-end real-time pipeline for generating facial animation from streaming audio inputs
• Integrated multiple TTS providers (Cartesia, Minimax) with dynamic switching and voice configuration
• Implemented audio chunk streaming and real-time processing for low-latency lip-sync generation

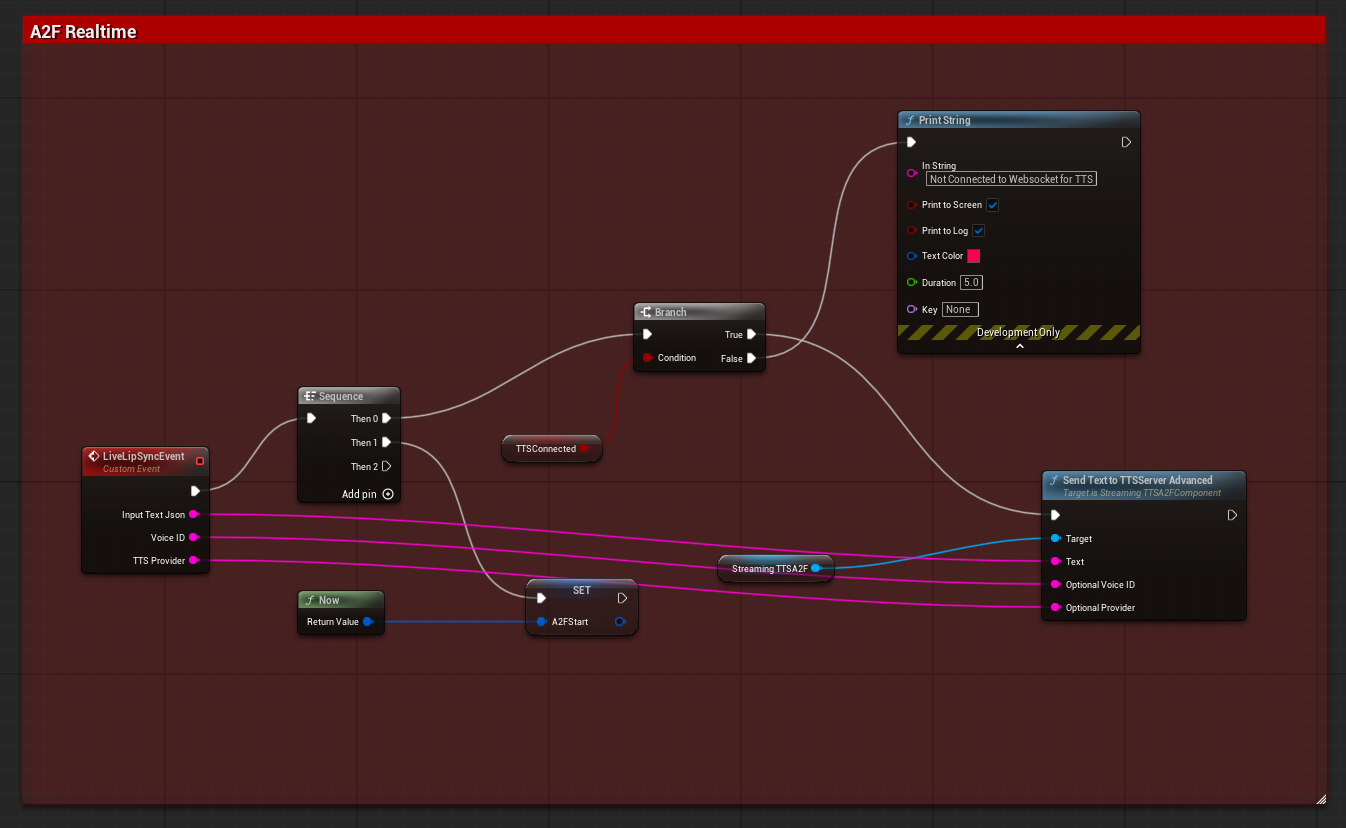

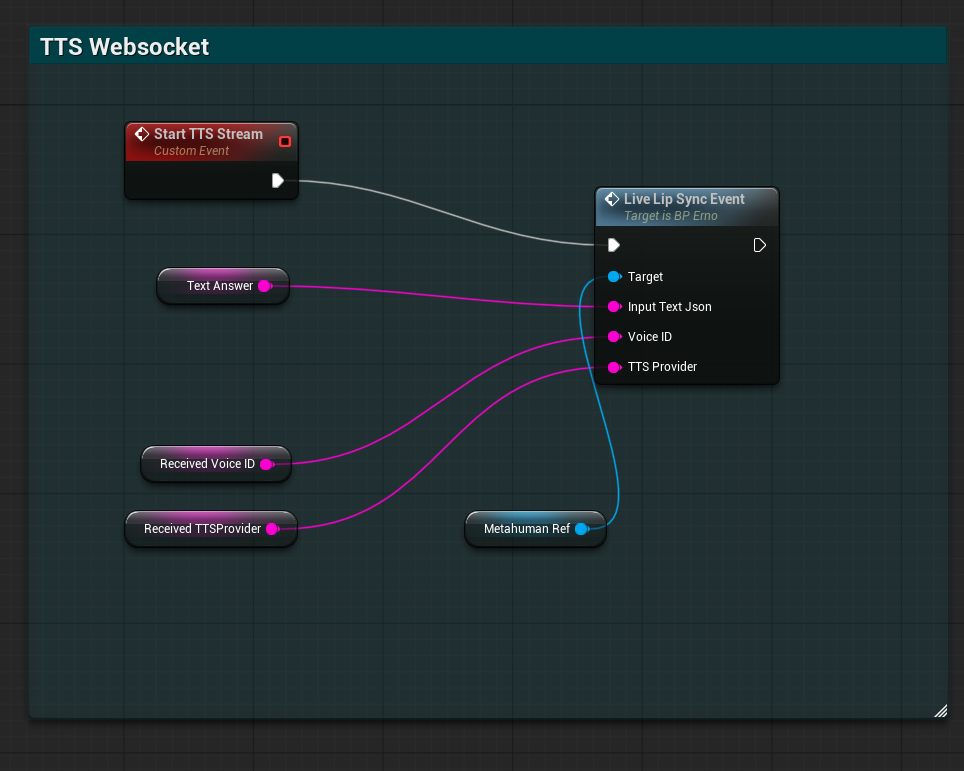

• Built WebSocket-based communication layer between TTS services and Unreal Engine

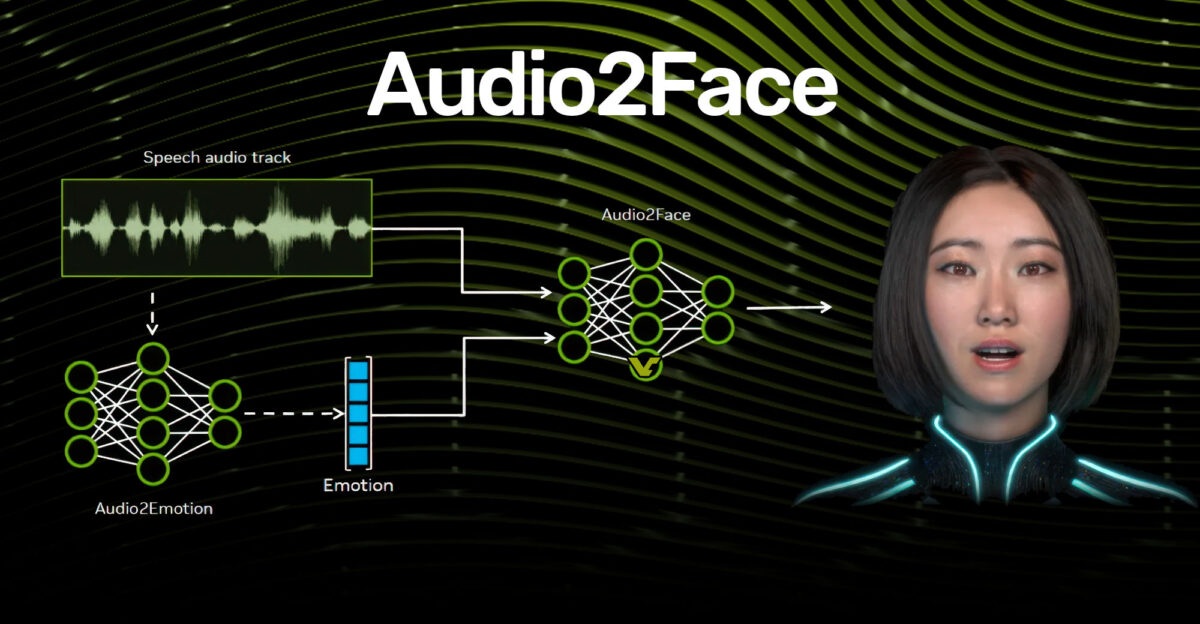

• Integrated NVIDIA Audio2Face for real-time facial solving and animation driving

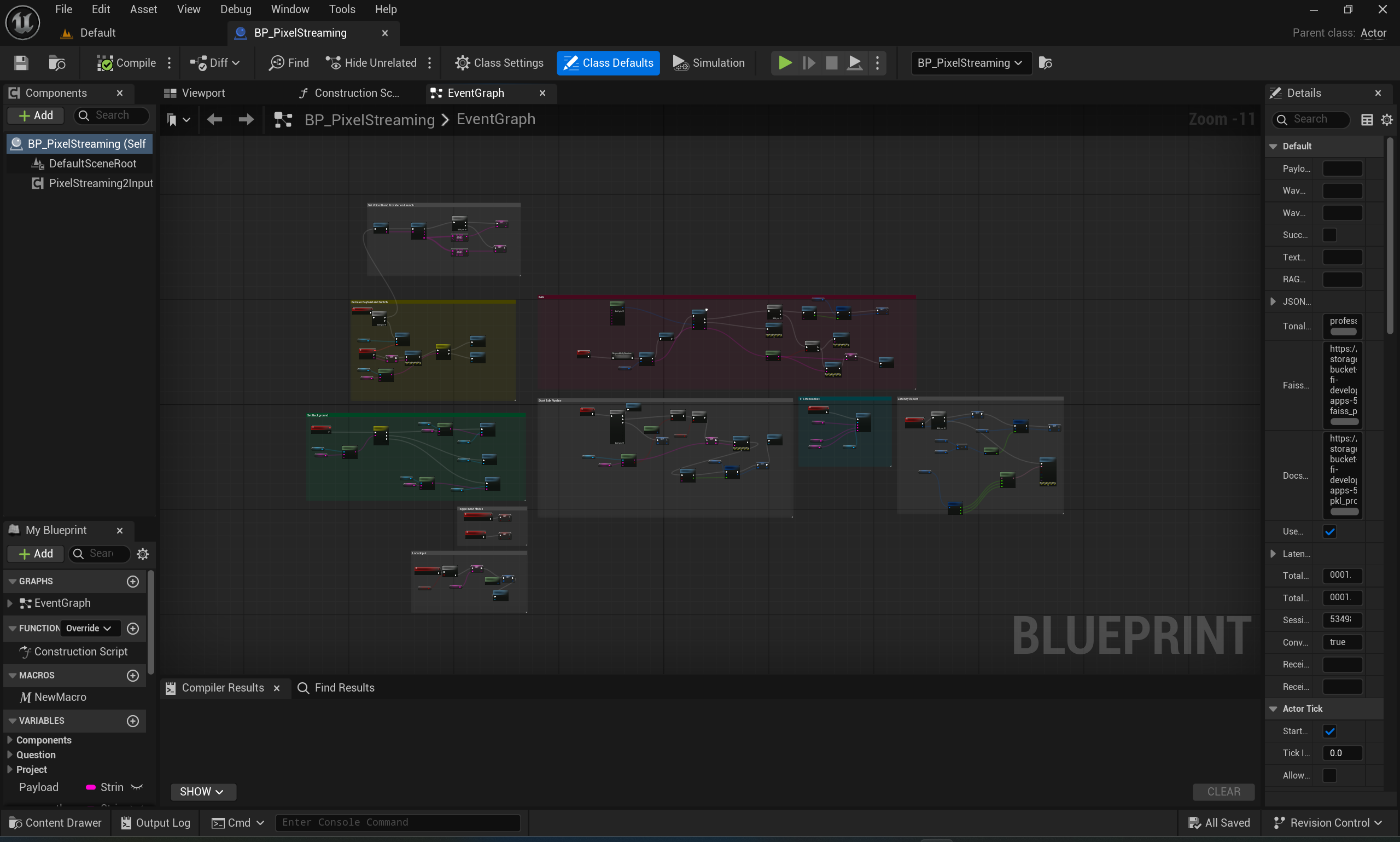

• Developed Pixel Streaming setup for remote avatar interaction via WebRTC

Scalability & Infrastructure

• Containerized Unreal Engine and supporting services using Docker
• Deployed pipeline on cloud infrastructure (Modal, GKE)
• Designed system to handle multiple avatar instances and concurrent sessions
• Implemented session handling and avatar registry system for dynamic avatar loading

Performance Optimization

• Achieved ~60 FPS streaming at 720p using L40S GPUs
• Reduced cold start time to ~5–6 seconds
• Optimized audio resampling pipeline to eliminate cracking and stuttering issues
• Improved runtime performance by addressing FPS drops during speech

Pipeline Evolution & Architecture Improvements

• Transitioned from signalling server-based architecture to direct WebSocket communication
• Built relay system for efficient data flow between frontend and Unreal instances
• Implemented dynamic avatar loading (removing hardcoded setups)

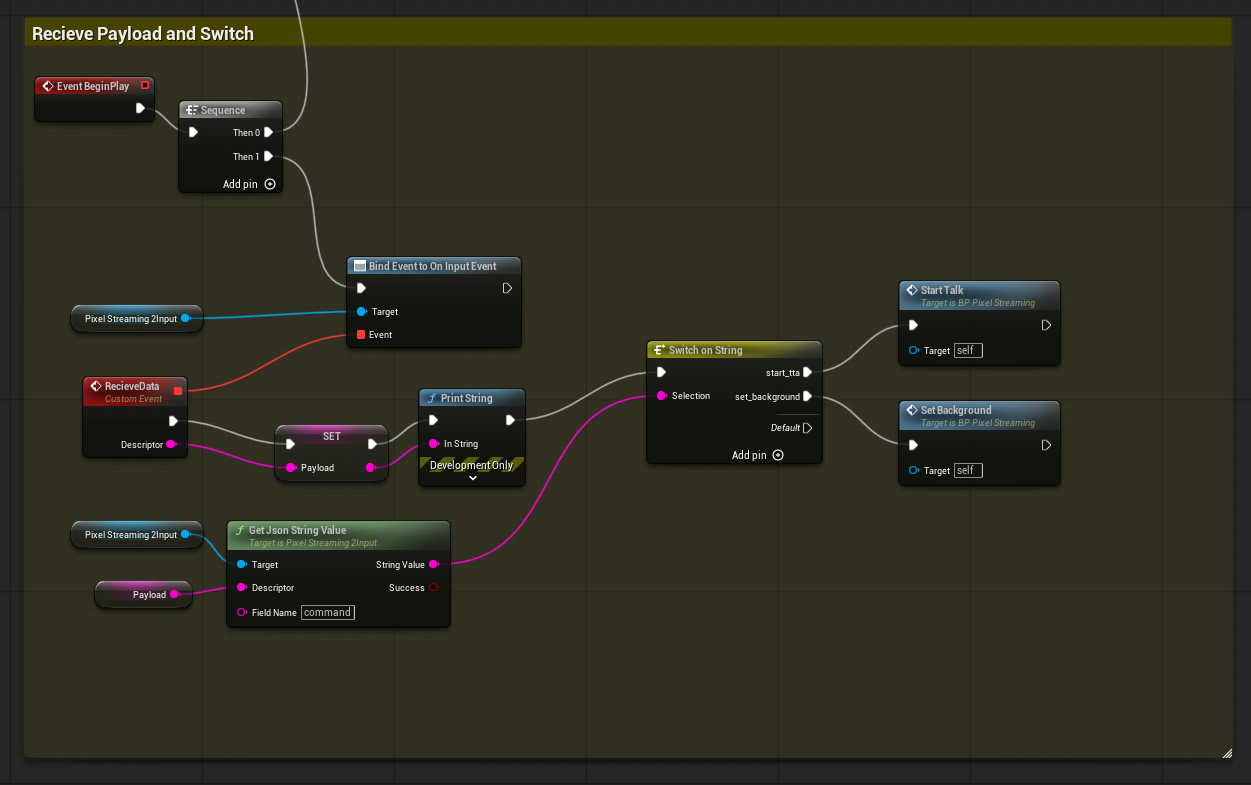

• Enabled real-time parameter control (voice ID, TTS provider, background, avatar selection)

‍

Avatar System Enhancements

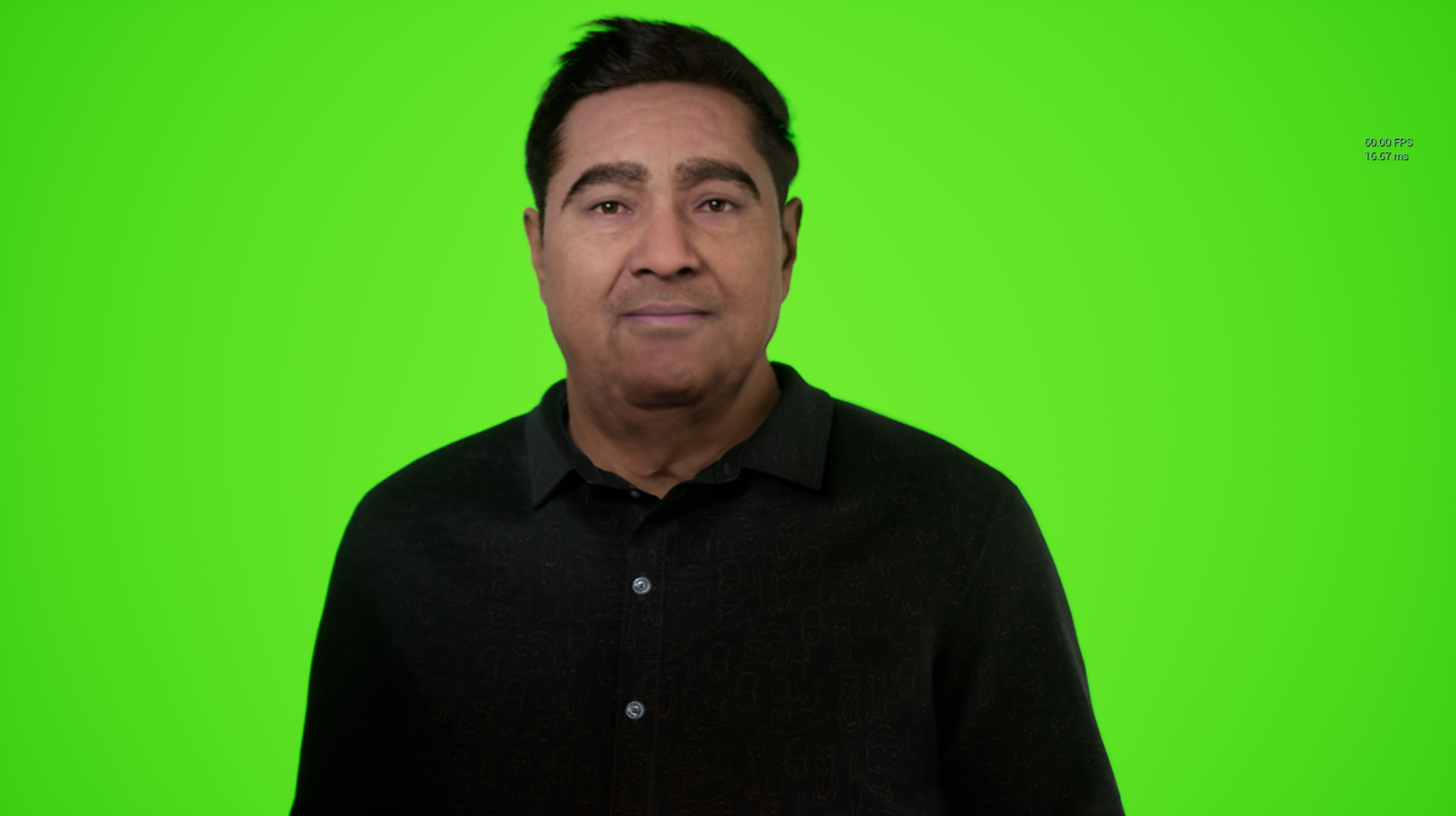

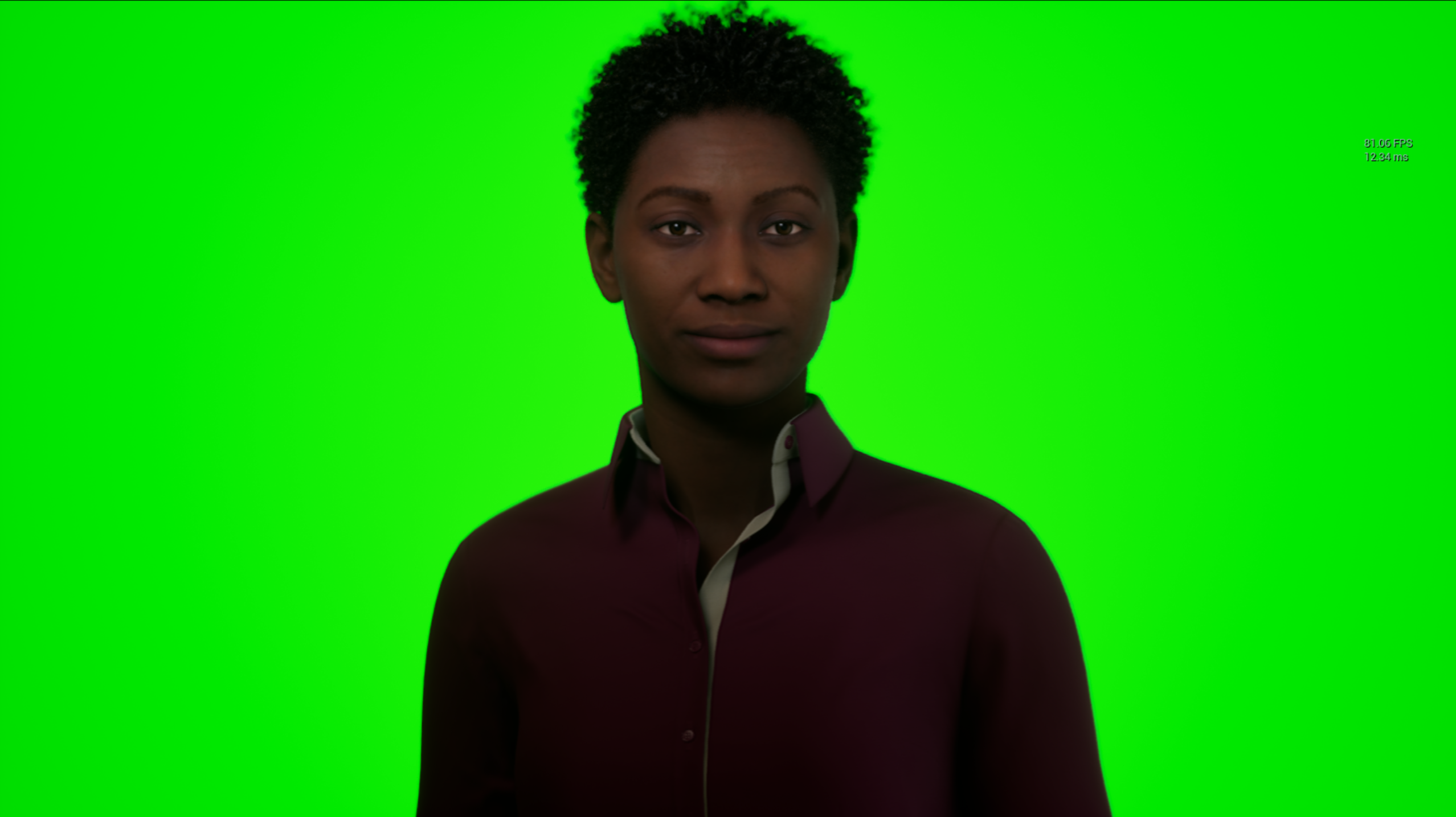

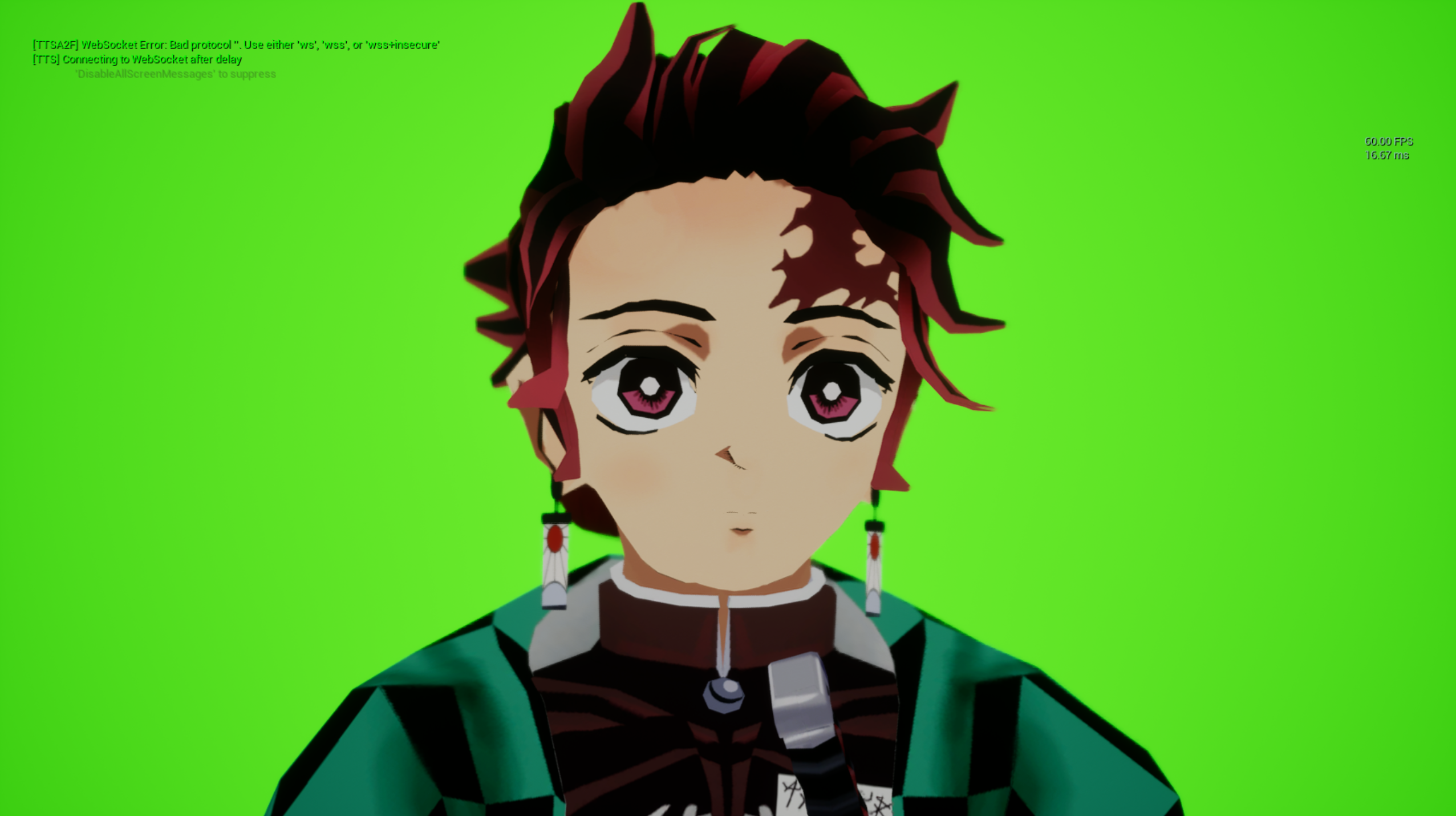

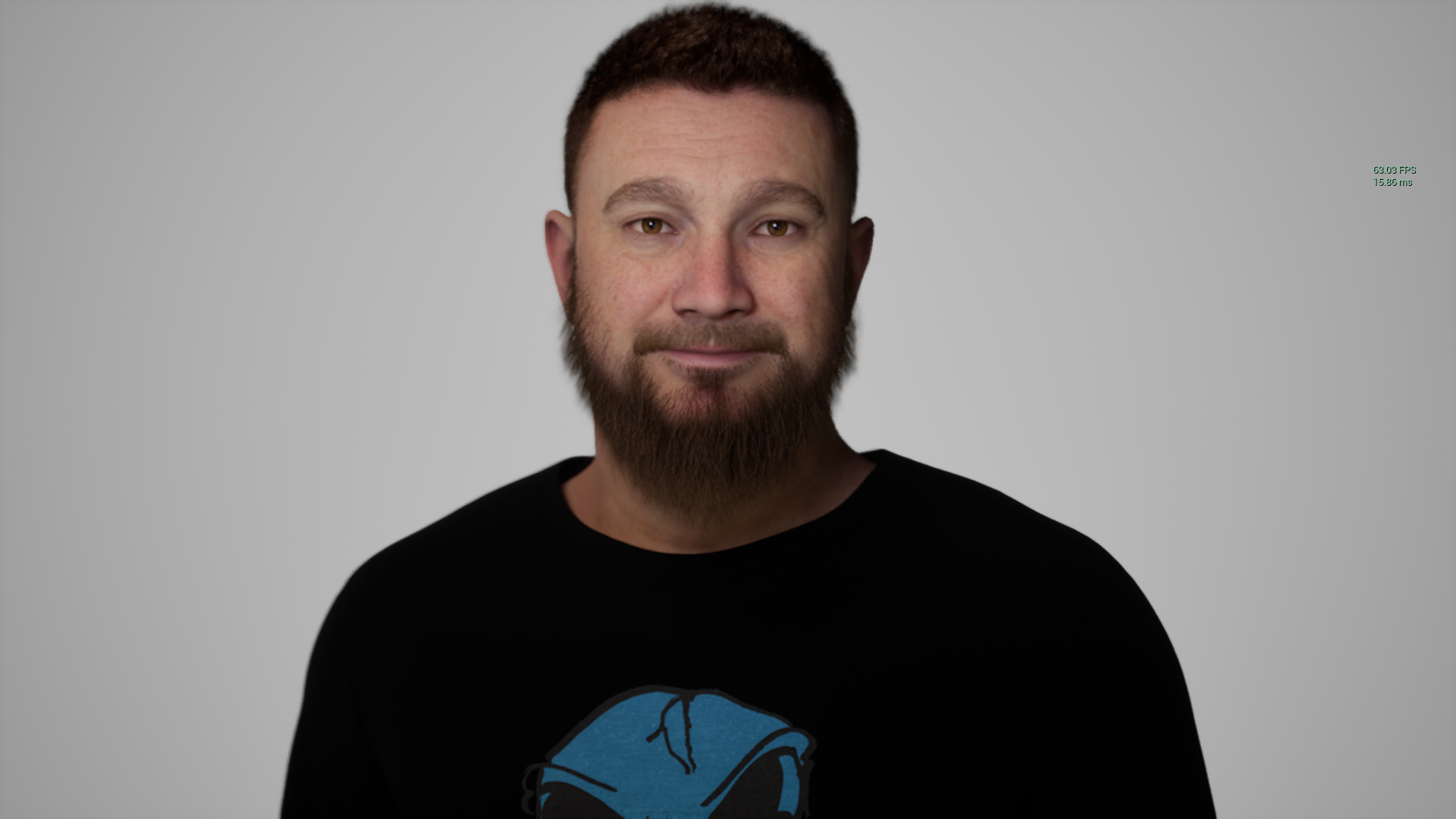

• Supported multiple avatars (full-body and half-body variants)

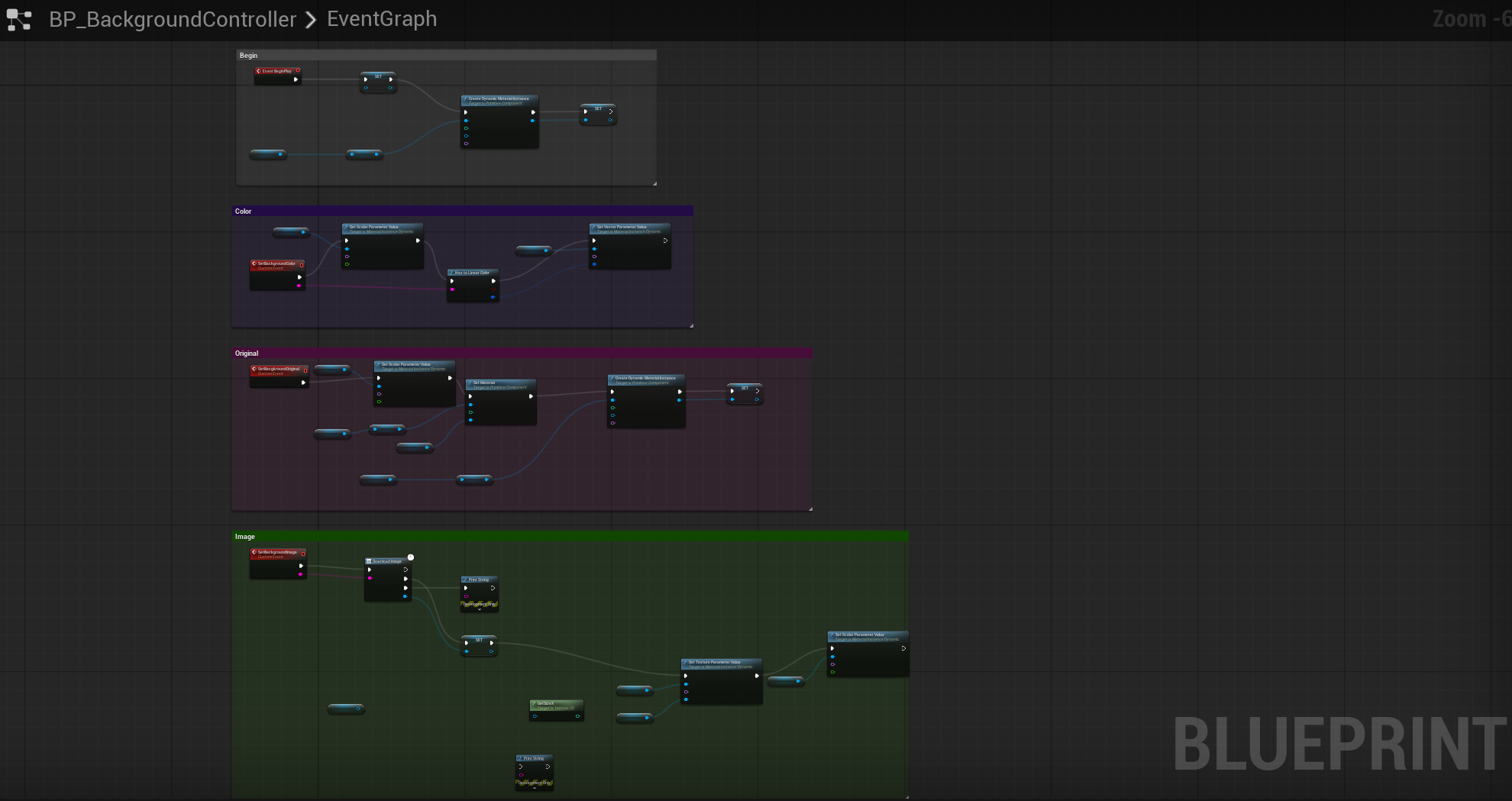

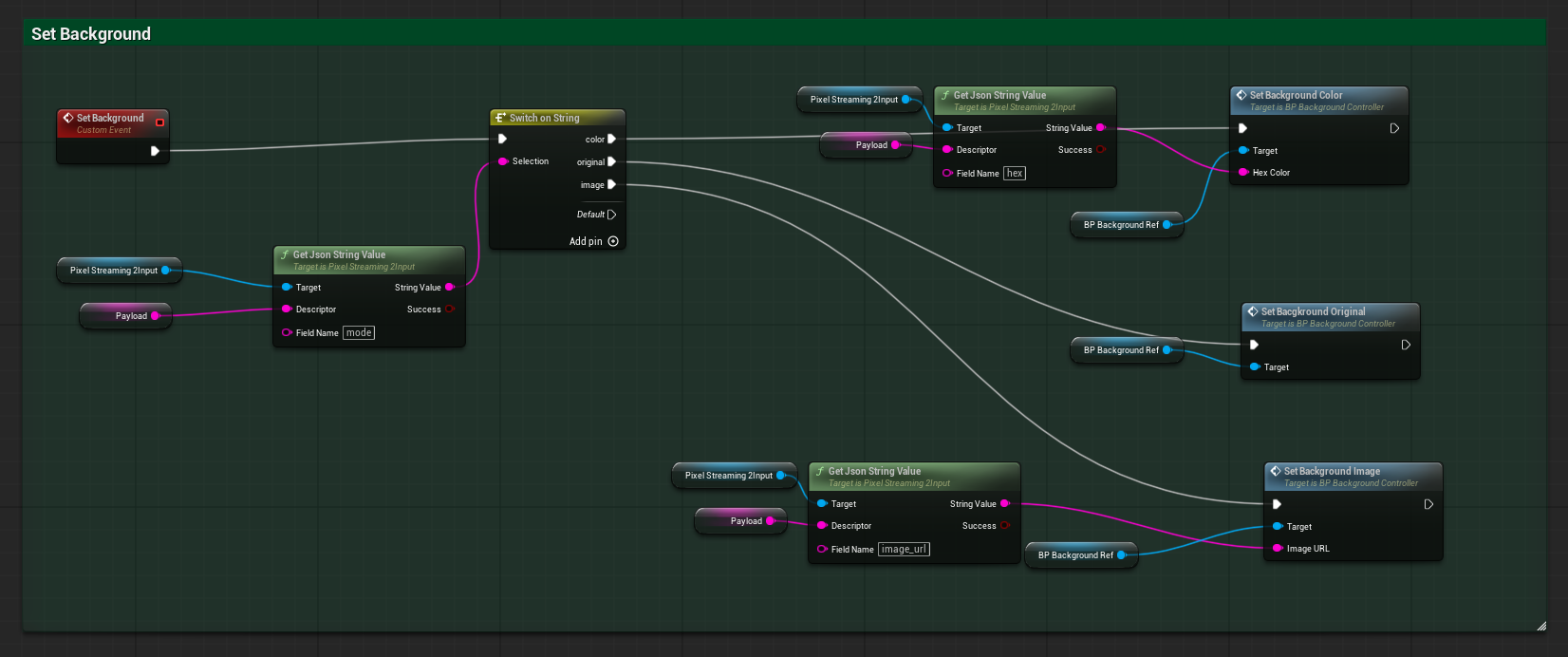

• Added dynamic background customization (color & image-based)

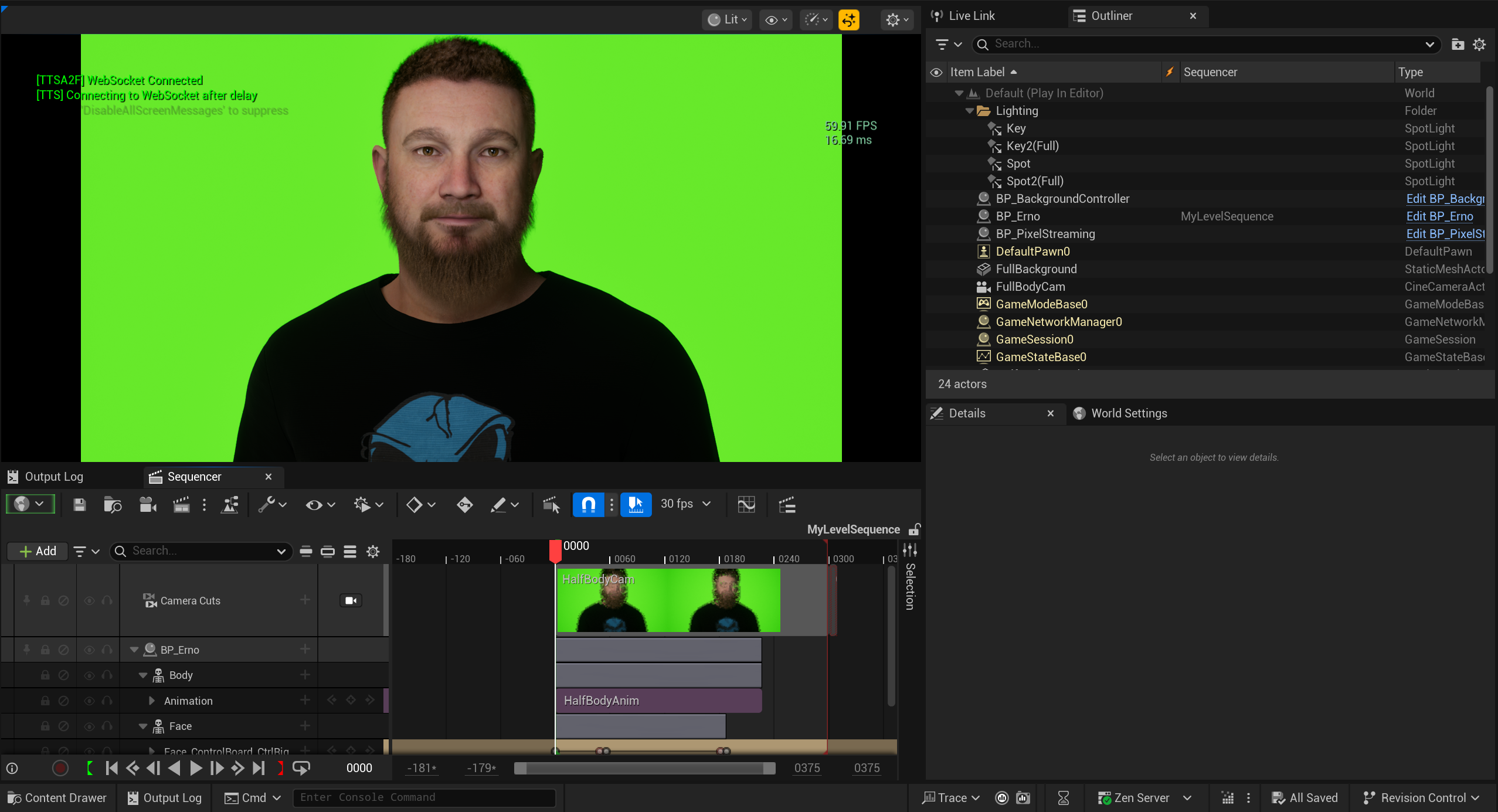

• Integrated control rigs for facial expressions, blinks, and realism improvements

Monitoring & Debugging

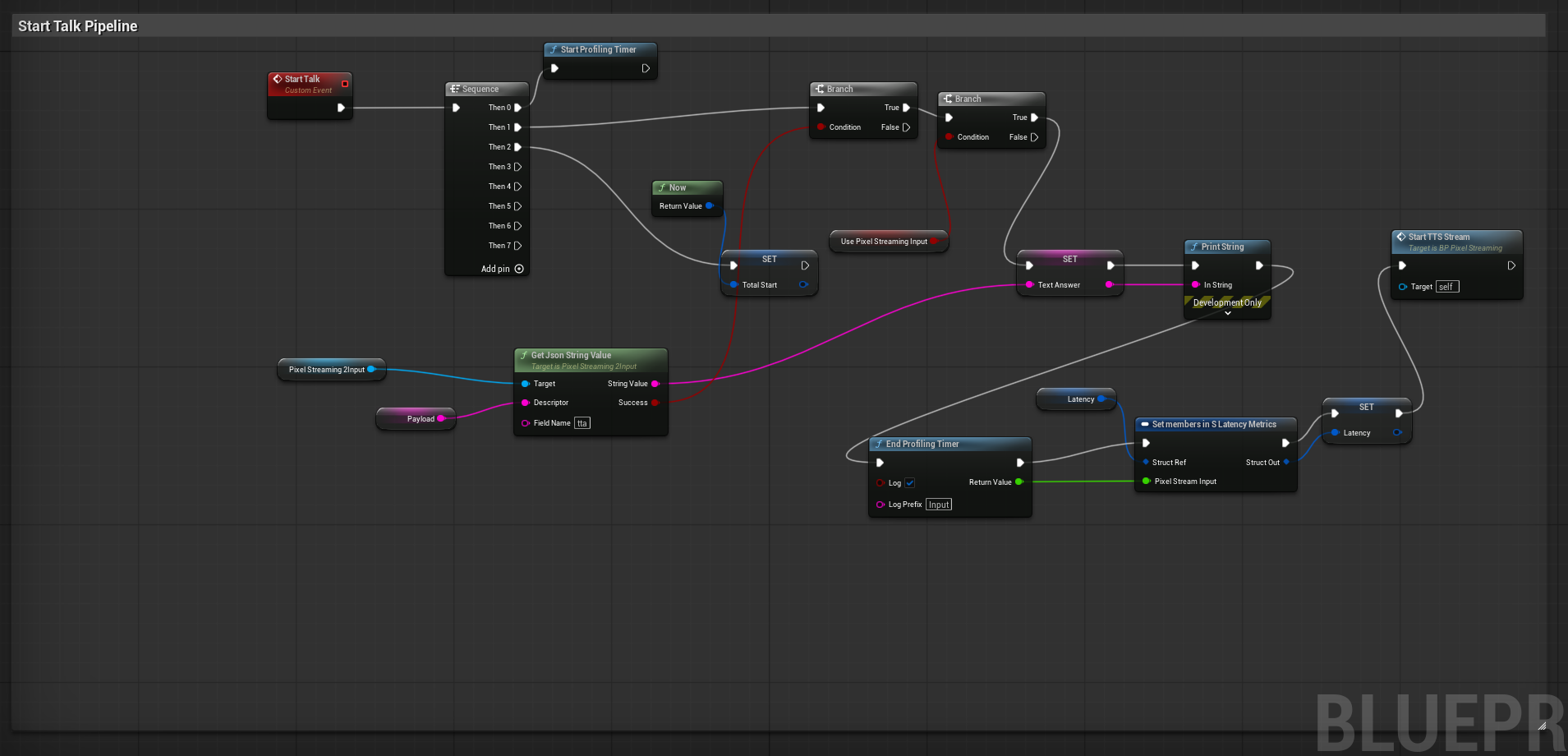

• Implemented latency reporting across pipeline stages (TTS, streaming, inference)
• Identified and resolved issues related to:
  • WebRTC connectivity (ICE candidates)
  • Session disconnections
  • Audio pipeline inconsistencies

‍
